Home » LD Transfer Case » Borg Warner
BW 4401 (1991-97 GMC Pickup K30 Mechanical Shift) Borg Warner BW4401
View Larger

BW 4401 (1991-97 GMC Pickup K30 Mechanical Shift)


See Below  ▼ Borg Warner
More Products from Borg Warner
  Share

Overview

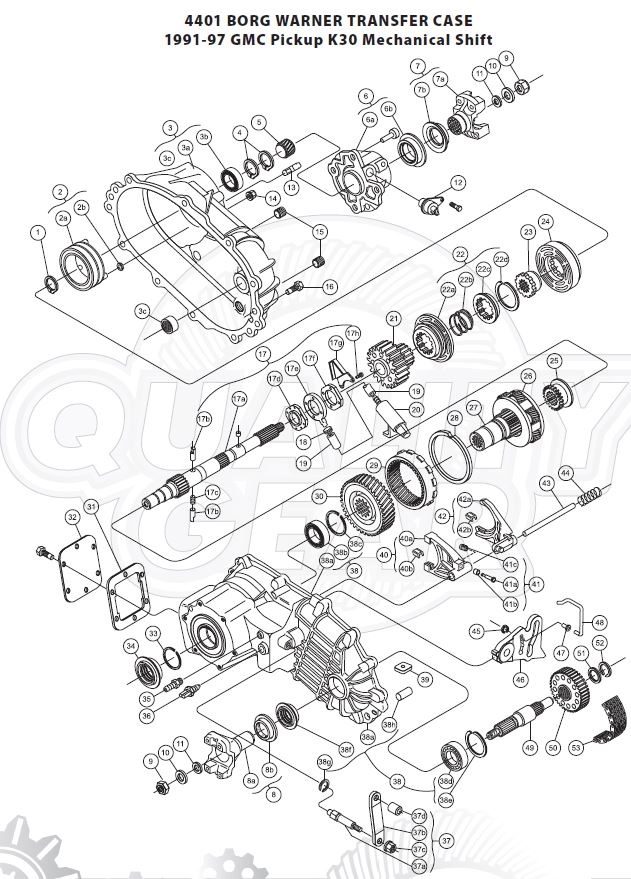

BW 4401 (1991-97 GMC Pickup K30 Mechanical Shift)
Item No. Part Number Name Notes Price Buy
1
1300 139 027
 Ring, Retaining Log in to see
prices
2
1370 645 001
 Assy, Clutch Coil Log in to see
prices
2A
1370 145 001
 Coil Log in to see
prices
2B
1300 141 461
 O-Ring Log in to see
prices
3
4401 539 001
 Assy, Rear Case Half Log in to see
prices
3A
4401 039 001
 Case, Rear Half Log in to see
prices
3B
6207
 Bearing, Rear Output Can Use 1345 130 001 Log in to see
prices
3C
B2012
 Bearing, Needle Log in to see
prices
4
1300 139 027
 Ring, Retaining 2 Req'D Log in to see
prices
5
1370 110 001
 Gear, Speedo Log in to see
prices
6
1370 566 004
 Assy, Bearing Cap W/ Fixed Yoke Log in to see
prices
6
1370 566 008
 Assy, Extension Housing W/ Slip Yoke Log in to see
prices
6A
1370 066 003
 Cap, Bearing W/ Fixed Yoke Log in to see
prices
6A
1370 066 008
 Housing, Extension W/ Slip Yoke Log in to see
prices
6B
18687
 Seal, Rear Output W/ Slip Yoke Can Use 1300 044 014 Log in to see
prices
6B
18994
 Seal, Rear Output W/ Fixed Yoke Can Use 1300 044 009 Log in to see
prices
Ni
1356 127 001
 Bushing W/ Slip Yoke Log in to see
prices
Ni
1300 183 017
 Bolt, Extension Housing 4 Req'D Log in to see
prices
7
1370 531 002
 Assy, Rear Output Yoke All Exc. Below Log in to see
prices
7
4400 531 001
 Assy, Rear Output Yoke Assy# 4401-009,010,015-020 Log in to see
prices
7A
1370 031 002
 Yoke, Rear Ouput All Exc. Below Log in to see
prices
7A
4400 031 001
 Yoke, Rear Output Assy# 4401-009,010,015-020 Log in to see
prices
7B
1300 031 001
 Deflector Log in to see
prices
8
1370 531 001
 Assy, Front Output Yoke 32T Log in to see
prices
8A
1370 031 001
 Yoke, Front Output Log in to see
prices
8B
1300 035 001
 Deflector Log in to see
prices
9
1900 149 002
 Nut, Output Yoke Log in to see
prices
10
1000 047 015
 Washer Log in to see
prices
11
1300 016 002
 Washer, Rubber Log in to see
prices
12
1370 640 001
 Sensor, Speed Log in to see
prices
Ni
11503080
 Bolt, Speed Sensor Log in to see
prices
13
12010293
 Terminal Seal Log in to see
prices
13
12089305
 Terminal Connector Male Log in to see
prices
13
1370 140 003
 Terminal Connector Log in to see
prices
14
1300 149 002
 Nut 3 Req'D Log in to see
prices
15
1900 052 008
 Plug, Drain/Fill (.50"-14Npt)2 Req'D Log in to see
prices
16
1300 183 017
 Bolt, Case Half 10 Req'D Log in to see
prices
17
4401 410 003
 Assy, Mainshaft & Pump W/ Fixed Yoke Log in to see
prices
17
4401 410 002
 Assy, Mainshaft & Pump W/ Slip Yoke Log in to see
prices
17A
nss
 Mainshaft W/ Fixed Yoke Log in to see
prices
17A
nss
 Mainshaft W/ Slip Yoke Log in to see
prices
17B
1345 043 007
 Pin, Pump 2 Req'D Log in to see
prices
17C
1345 156 004
 Spring, Pump Pin Log in to see
prices
17D
1345 039 007
 Cover, Front Pump Log in to see
prices
17E
1345 097 004
 Housing, Pump Log in to see
prices
17F
1345 039 005
 Cover, Rear Pump Log in to see
prices
17G
1356 056 004
 Retainer, Pump Log in to see
prices
17H
1345 183 003
 Bolt, Oil Pump (M5X.8X20Mm) Log in to see
prices
18
1345 056 005
 Clamp, Hose Log in to see
prices
19
1345 034 006
 Hose Log in to see
prices
20
1345 238 001
 Filter Log in to see
prices
21
1356 144 003
 Sprocket, Chain Drive Log in to see
prices
22
4401 589 001
 Assy, Lockup Log in to see
prices
22A
4400 055 001
 Collar Log in to see
prices
22B
1350 156 007
 Spring Log in to see
prices
22C
1900 089 001
 Hub, Lockup Log in to see
prices
22D
1000 139 041
 Ring, Retaining Log in to see
prices
23
1356 090 002
 Hub, Shift collar Log in to see
prices
24
4400 212 001
 Housing, Clutch Coil Log in to see
prices
25
1356 089 001
 Hub, Reduction Shift Log in to see
prices
26
1370 659 003
 Assy, Planetary Carrier W/O Pto Log in to see
prices
26
1370 659 004
 Assy, Planetary Carrier W/ Pto Log in to see
prices
27
1370 689 003
 Assy, Input Shaft Log in to see
prices
Ni
1370 189 003
 Shaft, Input Log in to see
prices
Ni
1300 132 015
 Bearing, Input Pilot Log in to see
prices
Ni
1345 127 002
 Bushing, Input Pilot Log in to see
prices
28
1300 139 012
 Ring, Retaining Log in to see
prices
29
1356 162 002
 Gear, Planetary Ring Log in to see
prices
30
4400 070 001
 Gear, PTO Log in to see
prices
31
1300 045 001
 Gasket, PTO Cover Log in to see
prices
32
1300 191 010
 Cover, PTO Log in to see
prices
Ni
1000 183 014
 Bolt, PTO Cover 6 Req'D Log in to see
prices
33
1300 139 009
 Ring, Retaining Log in to see
prices
34
18994
 Seal, Input Can Use 1300 044 009 Log in to see
prices
35
1345 072 001
 Breather Log in to see
prices
36
4400 640 002
 Switch, 4WD Indicator All Exc. Below 3 Position Log in to see
prices
36
1370 140 005
 Switch, 4WD Indicator Assy# 4401-001-004,011,012 Log in to see
prices
37
4401 598 001
 Assy, Shift Lever All Exc. Below Log in to see
prices
37
1370 598 002
 Assy, Shift Lever Assy# 4401-001,002 Log in to see
prices
37A
1370 122 002
 Shaft, Shift Log in to see
prices
37B
4401 098 001
 Lever, Shift All Exc. Below Log in to see
prices
37B
1370 098 002
 Lever, Shift Assy# 4401-001,002 Log in to see
prices
37C
1300 149 005
 Nut Log in to see
prices
37D
1300 102 001
 Grommet, Selector Rod Log in to see
prices
38
4401 565 004
 Assy, Front Half All Exc. Below Log in to see
prices
38
4401 565 001
 Assy, Front Half Assy# 4401-001-004,011,012 Log in to see
prices
38A
4401 065 002
 Case, Front Half All Exc. Below Log in to see
prices
38A
4401 065 001
 Case, Front Half Assy# 4401-001-004,011,012 Log in to see
prices
38B
6010
 Bearing, Input Can Use 1300 130 001 Log in to see
prices
38C
1300 139 010
 Ring, Retaining Log in to see
prices
38D
6207
 Bearing, Front Output Can Use 1345 130 001 Log in to see
prices
38E
T86-7.5
 Ring, Retaining Log in to see
prices
38F
18994
 Seal, Front Output All Exc. Below Can Use 1300 044 009 Log in to see
prices
38F
18771
 Seal, Front Output Assy# 4401-009,010,015-020 Log in to see
prices
38G
1300 016 001
 Sealing Ring Log in to see
prices
38H
1300 043 005
 Dowel Pin 2 Req'D W/Pto Log in to see
prices
38H
1300 043 002
 Dowel Pin 2 Req'D W/O Pto Log in to see
prices
39
1000 012 002
 Magnet Log in to see
prices
40
1300 596 001
 Assy, Reduction Shift Fork Log in to see
prices
40A
1300 096 001
 Fork, Reduction Shift Log in to see
prices
40B
1356 235 001
 Pad, Shift Fork 2 Req'D Log in to see
prices
41
1350 543 001
 Assy, Pin, Roller & Retainer Log in to see
prices
41A
1350 040 002
 Retainer Log in to see
prices
41B
1352 127 001
 Roller All Exc. Assy # 4401-015-020 Log in to see
prices
41C
1356 043 002
 Pin All Exc. Assy # 4401-015-020 Log in to see
prices
42
4400 596 002
 Assy, Lockup Fork All Exc. Assy # 4401-015-020 Log in to see
prices
42A
1356 096 007
 Fork, Lockup Assy# 4401-015 - 020 Log in to see
prices
42
4400 096 002
 Fork, Lockup All Exc. Assy # 4401-015-020 Log in to see
prices
42B
1345 235 001
 Pad, Shift Fork All Exc. Below (3 Req'D) Log in to see
prices
42B
1356 235 001
 Pad, Shift Fork Assy# 4401-015-020 (2 Req'D) Log in to see
prices
43
1350 100 001
 Shift Rail Log in to see
prices
44
4400 156 001
 Spring, Return Log in to see
prices
45
1345 056 002
 Clip Ring Log in to see
prices
46
4401 099 003
 Cam, Shift All Exc. Below Log in to see
prices
46
4401 099 002
 Cam, Shift Assy# 4401-001-004,011,012 Log in to see
prices
47
1300 127 011
 Bushing, Assist Log in to see
prices
48
1370 156 001
 Spring, Assist Log in to see
prices
49
1370 171 003
 Shaft, Front Output All Exc. Below Log in to see
prices
49
4401 171 002
 Shaft, Front Output Assy# 4401-009,010, 015-020 Log in to see
prices
50
1356 144 002
 Sprocket, Chain Driven Log in to see
prices
51
1345 193 005
 Washer Log in to see
prices
52
1345 139 004
 Ring, Retaining Log in to see
prices
53
NV13798
 Chain 1.25" Wide Log in to see
prices
53
4401 143 001
 Chain 1.50" Wide Log in to see
prices
Ni
4401 185 001
 Bracket Assy# 4401-017-020 Log in to see
prices
Ni
PK 1356
 Kit, Oil Pump Log in to see
prices
Ni
TC4401
 Kit, Bearing and Seal Log in to see
prices
Ni
SK4401
 Kit, Seal & Gasket Log in to see
prices

Specifications

  Product NameBW 4401 (1991-97 GMC Pickup K30 Mechanical Shift)
  Brand NameBorg Warner

Documents

BW - 4401.pdf
